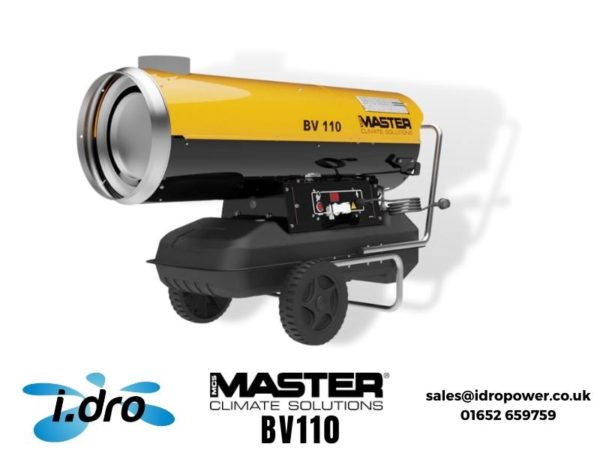

The BV110 is an indirect oil heater, designed for industrial and commercial business. For example, the BV110 is popular with construction companies and businesses with workshops, warehouses or factory floors. Moreover, being indirect, they are also top-rated solutions for events and marque heating, as the heated air is created separately from the exhaust. This means the heated air can be ducted into one space, while the exhaust fumes can be flued elsewhere. (If separate heat and combustion ducting are not a concern, a direct heating solution may be better for you.)

Duct and Flue your way to 100% clean, warm air

As mentioned above, the BV110 is an indirect heater, meaning the hot air it releases is separate from the air it creates in making heat. Therefore, it is possible to port the hot air into one location and the exhaust fumes safely away to another. This means the BV range can heat closed spaces that its cousins in the Master B range (B180; B230; B360😉 are unsuitable for.

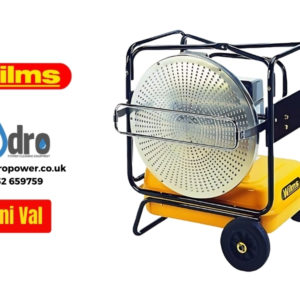

As an air heater, the heat output is much gentler than a radiant/infrared heater, yet it spreads into the environment much more quickly. What we mean by this is, you could stand nearer to the air output of a BV110 than, say, a Wilms VAL-6. The Val 6, perfect for certain applications, gets extremely hot. The BV110, on the other hand, will not cook your customers should you be hosting them in an events tent. The air and heat disperse.

Serious stamina

The BV110 boasts a fuel tank capacity of 65L and a consumption rate of 3.2 litres per hour. Giving the BV110 a fuel autonomy of 21 hours, the thermostat should only extend this. For example, if you were heating a space insulated enough so the BV110 only ran for half an hour every hour, you would double this time to 42 hours between fuel refills. Even so, at 21 hours of continuous running, you’re not going to be running back and forth with a fuel can to keep it going!

Serious Power

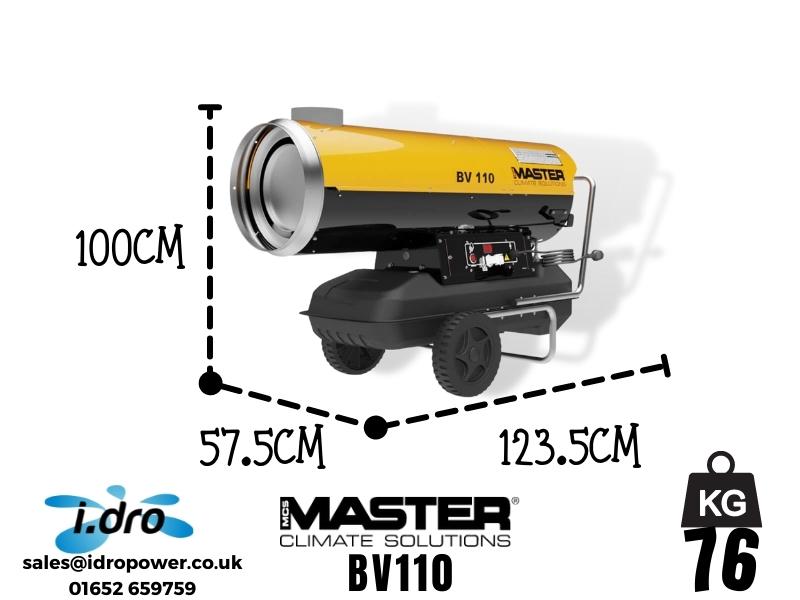

The BV110 packs 34kW of heating power. To put that in perspective, a home boiler of the same size would be able to power approximately 15 radiators (about 2kW each) and a bathroom. The application is different, with the BV110 concentrating that power into a smaller, single but often less well-insulated space. However, its clear to see, for such a compact unit (1.2m in length; 60cm wide and 1m tall), the BV110 packs some serious punch. A nice warm punch!

Serious Convenience

Trolley mounted, with nice large wheels, the BV110 is designed to be positioned anywhere (and, we mean anywhere!). You’ll find the Master BV110 on construction sites, outside events tents and in or around workshops and warehouses. Rough or smooth terrain, the trolley and wheels are there to help you get heat to where you need it, to keep you warm where you want to be warm.

To make controlling temperature easier, the BV110 comes with a thermostat (analogue or digital available). Like the thermostat on your home heating, these regulate temperature by turning your BV110 on and off as it is needed. A handy function, not only does it keep the temperature consistent, it helps save fuel as the machine is not continuously running.

How do I get one of these amazing heaters?

The Master BV110 is an indirect diesel-powered heater. Creating clean air, separate to exhaust, they are perfect for construction sites, warehouses, workshops and events tents. If you would like to find out more/enquire about the BV110 or our wider range of heaters, please get in touch via phone (01652) 659759, email (sales@idropower.co.uk), the messenger icon (left below) or via our contact form.

3 reasons to get a Master BV heater

1. They can be set up to duct heat into a space, meaning they can be kept out the way or even externally.
2. Their fumes can be flued separately to the clean heated air.
3. They are trolley mounted on sturdy wheels, making them easy to transport.

(Bonus reason: they look like a piece of siege equipment.)

Specification Table

Mobile phone users: our tables can be easier to read in landscape.

Specifications		Units		BV77		BV110		BV170		BV290
Heating Power		kW		21		34		49		85
Air Flow		m2/h		1550		1800				3300
Fuel Autonomy		h		19		21		14		13
Thermostat				Analogue or digital
Fuel consumption		l/h		2.0		3.2		4.7		8.1
Power supply		V/Hz		220-240/1ph/50						220-240/1ph/50-60
Electric power		kW		0.3		0.8				1.06
Rated current		A		1.5		3.5				4.6
Protection				IP40		IP44
Tank capacity		l		36		65				105
Flue Tube		Ømm		120		150
Flex Tube		Øcm		31		34				41
Product size (L x W x H)		mm		1130 x 380 x 660		1235 x 575 x 1000		1350 x 575 x 1000		1600 x 700 x 1150
Box size (L x W x H)		mm		1200 x 400 x 530		1200 x 650 x 1000		1330 x 650 x 1000		1670 x 750 x 1180
Net/gross weight		kg		33/37		61/76		67/84		101/123
Pallet				8		1		1		1
Dual Voltage				Available		Not Available		Available
