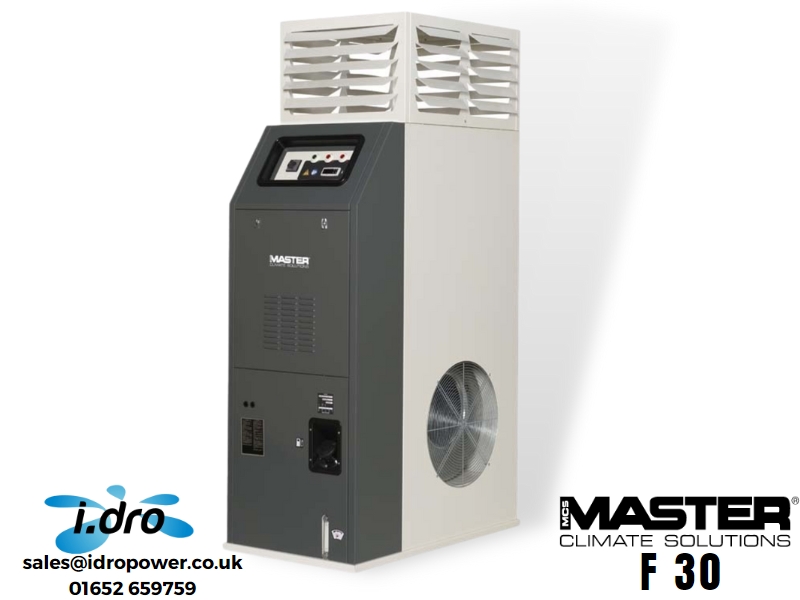

The Master F30 is a stationary, indirect oil-fired heater (diesel or kerosene). Using thermostatic technology, a high-capacity fuel tank, a centrifugal fan and a 4-sided air plenum, the F 30’s home is in commercial and industrial workplaces.

Indirect heating

An indirect heater, the F30 can be used in enclosed spaces (if installed correctly). This is because indirect heaters separate combustion from the air heating process. Therefore, exhaust fumes can be ported to a safe location for dispersal.

Stainless steel combustion chamber

The F30 Master is fitted with a stainless steel combustion chamber. A highly conductive material, stainless steel guarantees efficient transfer between the chamber and the air that the heater is heating.

Exhaust Flue

The F 30 comes with an exhaust flue system. This flue system, when installed correctly (a service Idropower can provide!), can carry exhaust fumes to a safe external location where they can disperse.

High fuel capacity and autonomy

The F30 boasts the best fuel economy and autonomy of the Master F range. Using 2.18L/h of fuel with a tank 80L in capacity, the F30 can run continuously for 36 hours before needing a refuel.

Thermostatic controls

The thermostat system of the Master F 30, while helping with temperature regulation, also serves to extend the heater’s autonomy. Already at 36 hours, the thermostat can extend running periods to days and days, before you need to get the fuel can!

Heat Output

For slightly smaller locations, the Master F 30 boasts 27.55kW (94’000 Btu/h) of heat output at an airflow rate of 2’700 cubic metres per hour. In other words, the F 30 could fill a space the size of an Olympic swimming pool (c.2’500m3) with heated air in less than an hour.

4-sided air plenum

To allow for maximum coverage the F 30 boasts a 4-sided air plenum. This means the F 30 can push heat outwards in all directions. However, the vents on each side can also be shut, to make the F 30 more directional.

Summer Ventilation

Cold in the winter, but hot and stuffy in the summer? The F 30 comes with a summer function. The summer function isolates the heater’s fan element.

Centrifugal Fan

Both winter and summer settings use a centrifugal fan to circulate air.

How do I get one of these fabulous heaters?

The Master F 60 is a high-powered, stationary and indirect air heater. Manufactured for regulating temperatures in warehouses, workshops, greenhouses and livestock buildings.

If you would like to find out more/enquire about the F 60, or our wider range of heaters, please get in touch via phone at (01652) 659759, the messenger icon (right below) or via our contact form.

Features

• Large built-in oil tank
• Integrated burner with electronic flame control and photocell cut-off
• Fan limit thermostat with automatic reset
• Summer/winter switch for ventilation only
• Centrifugal fan
• Stainless steel combustion chamber
• High-efficiency dual-circuit heat exchanger
• Wide inspection doors for easy cleaning
• Built-in thermostat

Specification

Specifications	Units	F 30	F 60	F 80
Heating Power	kW	27.55	59.63	79.88
	Btu/h	94’000	203’500	272’550
	kcal/h	23’600	51’300	68,700
Air Flow	m3/h	2700	6000	7800
Fuel		Oil: Diesel/Kerosene
Fuel consumption	L/h	2.18	4.71	6.32
Fuel autonomy	h	36	23	17
Electric power	kW	0.69	1.36	1.8
Power supply	V/Hz	220-240/1ph/50
Flue tube	mm	153
Air Pressure	Pa	150
Tank capacity	L	80	110

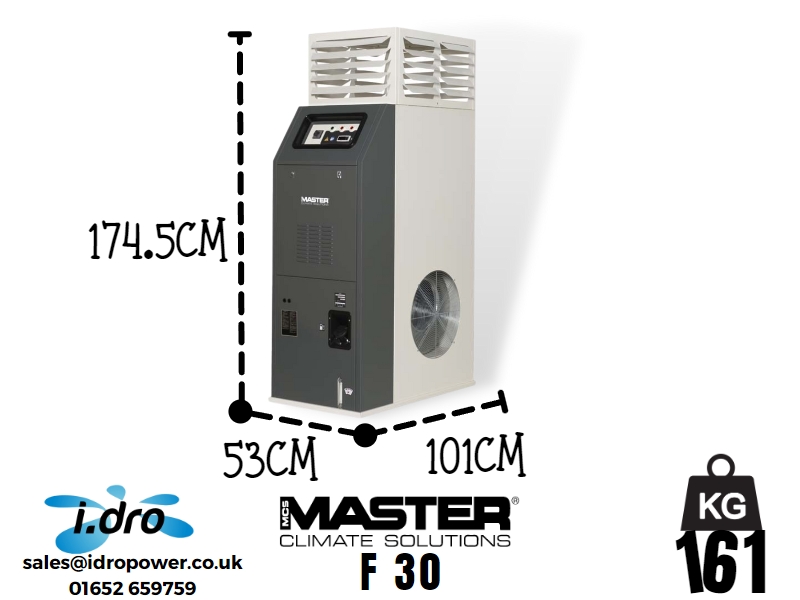

Product size (LxWxH)	cm	101x53x174.5	104.5x60x192	140x64x209
Net/gross weight	kg	161	212	291
