HD 823 - Etronic II (Ehrle)

Print
A robust and powerful single-phase hot water pressure washer with a high-quality burner system and durable construction, making it suitable for medium to heavy-duty cleaning tasks.

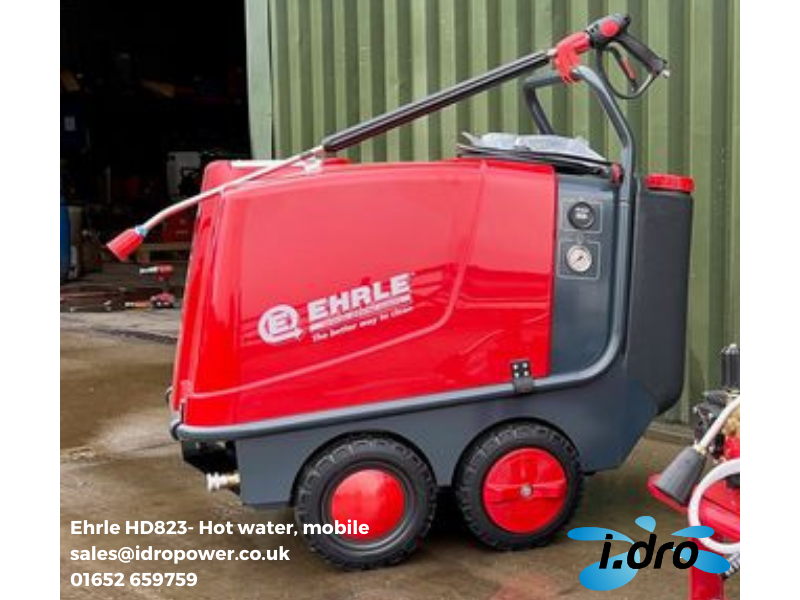

An Ehrle HD823 stood infront of the IdroPower workshopAn Ehrle HD823 stood infront of the IdroPower workshop

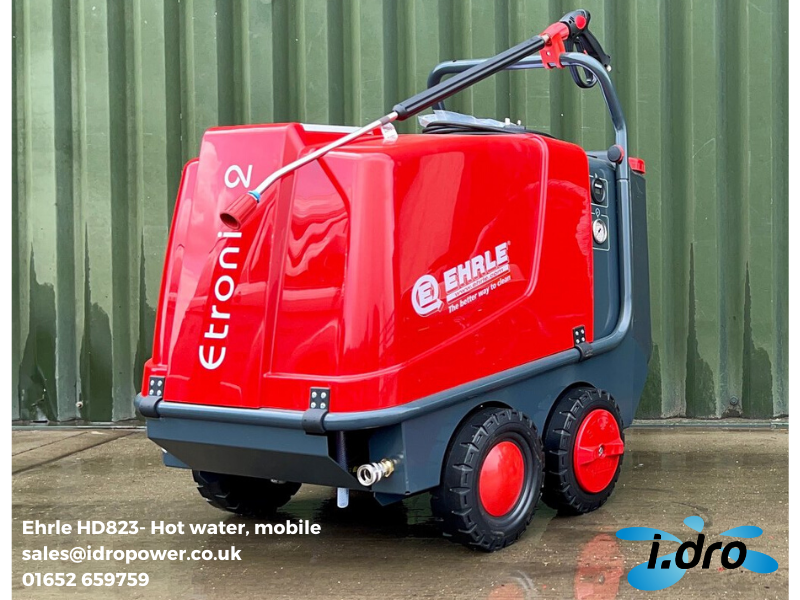

An Ehrle HD823 stood infront of the IdroPower workshop
A side on view of an Ehrle HD823 stood infront of the IdroPower workshop

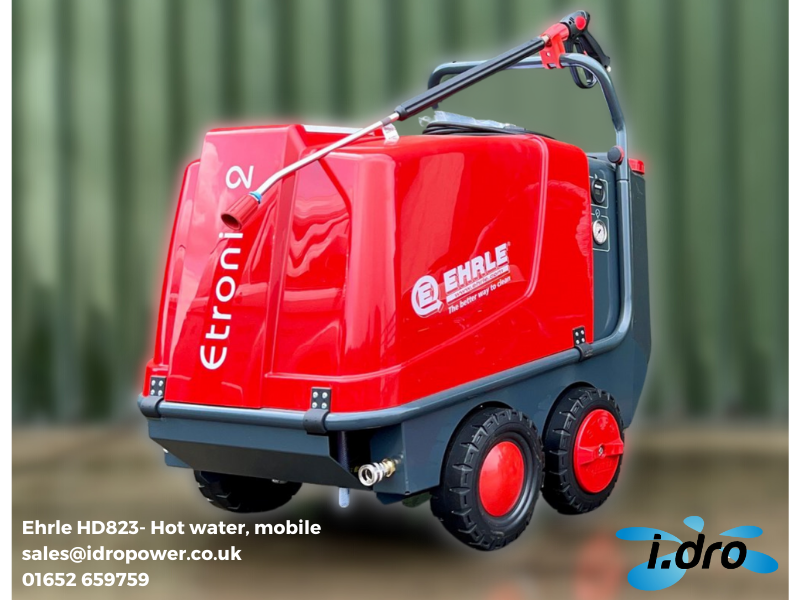

An Ehrle HD823 stood infront of the IdroPower workshop
Description

Single Phase (230V) - Hot Water (30 - 98°C) - Mobile

The Ehrle HD823 is the definition of "high-performance cleaning". Fitted with Ehrle's prized triplex-pump design, the HD823 can turn out a whopping 140BAR of pressure at a tender 98°C and 12lpm. Furthermore, if that's not enough, the HD823 is encased by an impact-resistant ABS cover that protects itself from the muck and grime it will be helping you to blast away!

Mounted on a durable chassis and rubber wheels, the HD823 is remarkably mobile, making it the perfect weapon for laying siege to your cleaning tasks. Moreover, Ehrle has fitted the HD823 with Etronic II controls. These controls boast a simple to use analogue interface (twisty knobs and pressy buttons!) that automatically support useful systems such as "start-stop", "total stop" and "leakage recognition".  These systems are invaluable in extending the lifespan of the steam cleaner, reducing wear and tear. They are also beneficial to you, the user, effectively turning your trigger gun into a remote control.

How do I get an HD823?

The HD823 is a single-phase hot water pressure washer, meaning it operates on a mains, 230V, supply. If you would like to know more, ask for advice regarding your cleaning needs, or discuss the possibility of acquiring an HD823, then please do not hesitate to get in touch with us by phone (01652)659759 or email .

If you would like additional general information regarding the Ehrle HD series click here.

Standard or Premium?

There are no performance differences between the standard and premium options as the base pressure washer remains the same. Instead, the premium option comes with several handy extras, such as a fitted hose reel, which is fantastic for reeling in and tidily storing your 20m hose (10m extra than the standard option), and a high-powered rotary nozzle lance. Below is a comprehensive table of the two, standard and premium, options:





Standard



Premium

Controls



Etronic II

High-pressure hose length (m)



10



20

Hose reel





Trigger gun with swivel





Spray Lance 900mm with nozzle protection





Stainless Steel jet nozzle 25°





Spray Lance 900mm with rotary nozzle





Water supply separation acc. water reg.





Chemical supply in high-pressure jet with a metering valve





Specification Comparison Table

Type (HD)   623   823   940   1140   1240
Voltage   1 /230V / 50Hz   3 / 400 - 415 / 50Hz
Operating pressure (bar)   30 - 160   30 - 140   30 - 190   30 - 230   30 - 160
Max. pressure (bar)   180   165   210   250   180
Discharge capacity (l/h)   300 - 600   300 - 720   300 - 840   300 - 1000   300 - 1200
Nozzle size   034   045   070
Hot water capacity (°C)   30 - 98 (Max. 150)
Pump speed (rpm)   1400
Connected load (kW)   3,1   3,4   5,4   7,6
Electrical protection   16 (slow-blowing)   3 x 16 (slow-blowing)
Standard Weight net / with package (kg)   149 / 170   158 / 179   159 / 180   178 / 199   177 / 198
Premium Weight net / with package (kg)   158 / 179   167 / 188   168 / 189   187 / 208   186 / 207
Standard Dimensions / with package (mm, L x W x H))   1070 x 735 x 1020 / 1160 x 770 x 960
Premium Dimensions / with package (mm, L x W x H)   1070 x 735 x 1310 / 1160 x 770 x 1350





Reviews

There are yet no reviews for this product.
