HD 940 - Etronic II (Ehrle)

Print
A versatile and high-performance 3-phase hot water pressure washer with an energy-efficient burner system and durable construction, making it suitable for heavy-duty cleaning tasks.

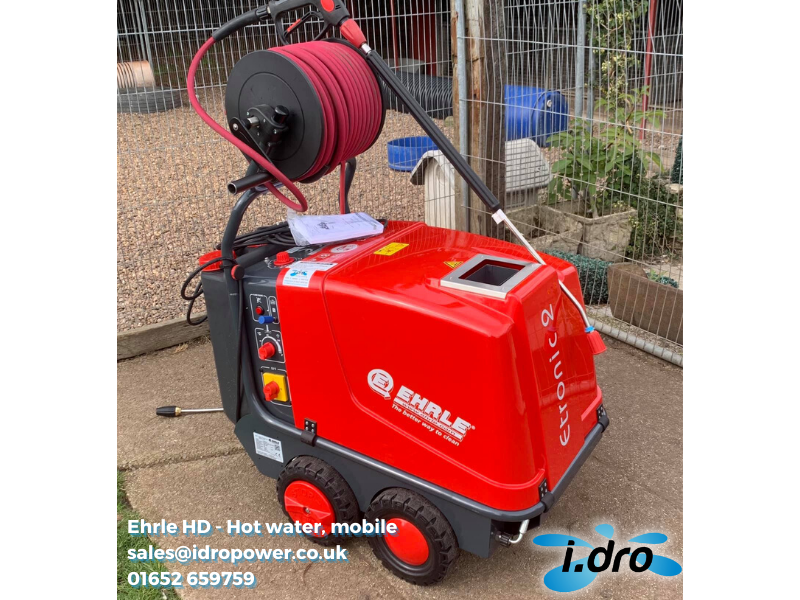

Ehrle HD premium (with hose reel)Ehrle HD premium (with hose reel)

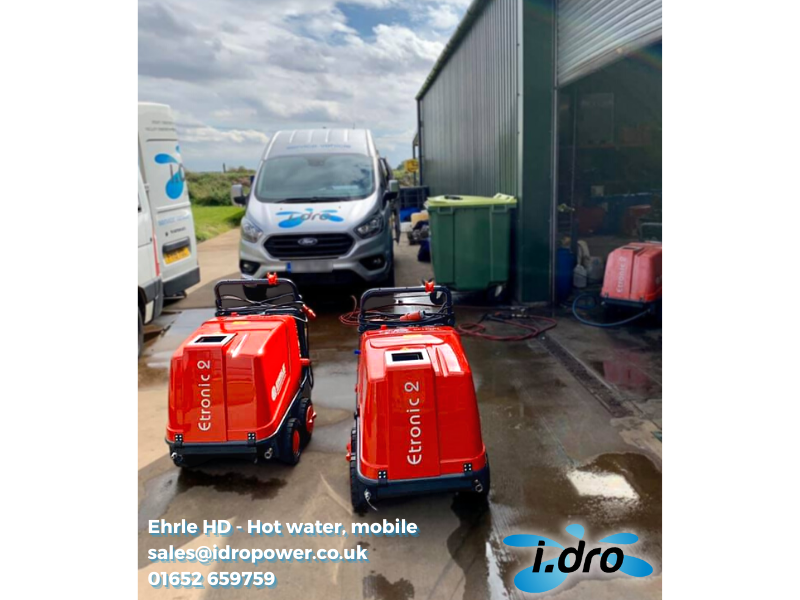

A pair of Ehrle HDs being prepared to go out on hire.

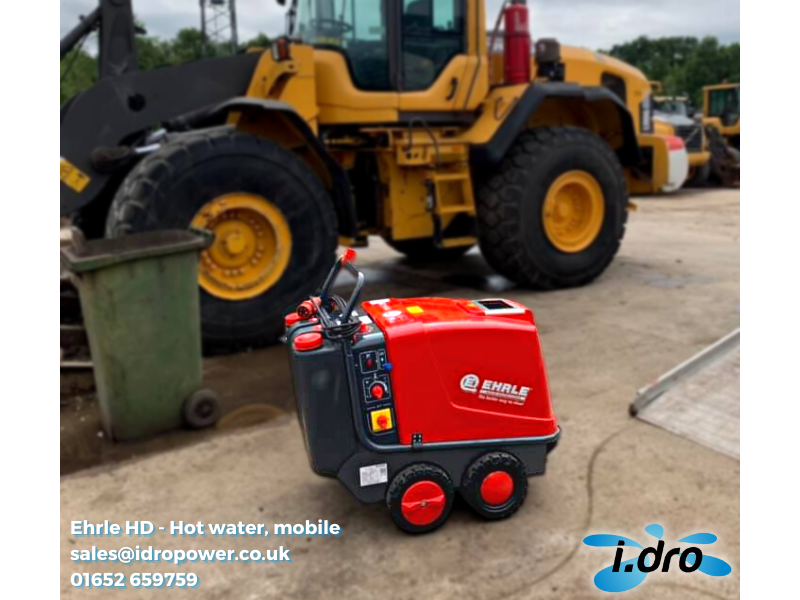

An Ehrle HD being dropped off with a customer.
Ehrle HD premium (with hose reel)
Description

 Three Phase (400V) - Hot Water (30 - 98°C) - Mobile

The HD940 is a hot water pressure washing masterpiece. Boasting Ehrle’s prized, high-performance triplex-pump design, the Ehrle HD940 can turn out a knee-weakening 190BAR of pressure at 98°C, 14LPM and 1400RPM.

“That’s all well and good, but how do those numbers help me?”

In short, they mean easy cleaning of even the grimiest cleaning tasks. For instance, at 190BAR and 14LPM the HD940 outstrips many cold washers. Their pressure (190BAR) breaks up the dirt and grime, while the water flow (14LPM) washes that grime away. Throw into the mix its ability to heat water, which helps loosen muck or break up oily messes, and you have a washer that’s going to make your job a breeze.

“Awesome. How else can an HD940 make my work easier?”

Beyond the impressive cleaning performance, the HD940 sports proper rubber wheels that make it easier to move and transport around workspaces with both smooth and, crucially, rough surfaces that castors would struggle with. Moreover, all HDs, including the 940, have a protective, impact-resistant (ABS) cover that shields it from its own dirt busting and other potentially damaging objects and accidents.

In excess of this,...

“There’s more, wow!?”

… the HD940 is fitted with Ehrle’s prized Etronic II controls. These controls boast a simple to use interface (dials, twisty knobs and pressy-buttons!) that provides incredible automated functions to help your work. For example, the “start-stop” and “total-stop” systems effectively turn your Ehrle Quick-Release Trigger Gun into a remote control and safely shut your machine down after 20-minutes of inactivity. It is easy to get distracted while working, so having your machine safely switch itself off can not be understated. Moreover, having your pressure washer shut down after trigger releases mean the pump is no longer working and, thus, wearing itself out! In short, they improve safety and longevity.

How do I get an HD940?

The HD940 is a three-phase/400V machine. If you would like to know more, ask for advice regarding your cleaning needs, or discuss the possibility of acquiring an HD940, then please do not hesitate to get in touch with us by the messenger icon on our website, phone (01652)659759 or email .



Features

Standard    Premium
  • 10m HP-Hose DN08 - 315bar
  • Trigger-Gun with swivel
  • Spray-Lance 900mm c/w. Nozzle-Protection
  • Stainless-Steel Jet-Nozzle 25°
  • Water-Supply separation acc. water reg.
  • Chemical supply in high-pressure Jet c/w Metering-valve

  • Hose-Reel
  • 20m HP-Hose DN08 - 315bar
  • Trigger-Gun with swivel
  • Spray-Lance 900mm c/w. Nozzle-Protection
  • Stainless-Steel Jet-Nozzle 25°
  • Spray-Lance 900mm c/w. Rotary-Nozzle
  • Water-Supply separation acc. water reg.
  • Chemical supply in high-pressure Jet c/w. Metering-valve



Specification Comparison Table

Type (HD)   623   823   940   1140   1240
Voltage   1 /230V / 50Hz   3 / 400 - 415 / 50Hz
Operating pressure (bar)   30 - 160   30 - 140   30 - 190   30 - 230   30 - 160
Max. pressure (bar)   180   165   210   250   180
Discharge capacity (l/h)   300 - 600   300 - 720   300 - 840   300 - 1000   300 - 1200
Nozzle size   034   045   070
Hot water capacity (°C)   30 - 98 (Max. 150)
Pump speed (rpm)   1400
Connected load (kW)   3,1   3,4   5,4   7,6
Electrical protection   16 (slow-blowing)   3 x 16 (slow-blowing)
Standard Weight net / with package (kg)   149 / 170   158 / 179   159 / 180   178 / 199   177 / 198
Premium Weight net / with package (kg)   158 / 179   167 / 188   168 / 189   187 / 208   186 / 207
Standard Dimensions / with package (mm, L x W x H))   1070 x 735 x 1020 / 1160 x 770 x 960
Premium Dimensions / with package (mm, L x W x H)   1070 x 735 x 1310 / 1160 x 770 x 1350
