KD1540 4x4 (Ehrle)

Print
Coldwater, mobile pressure-washer

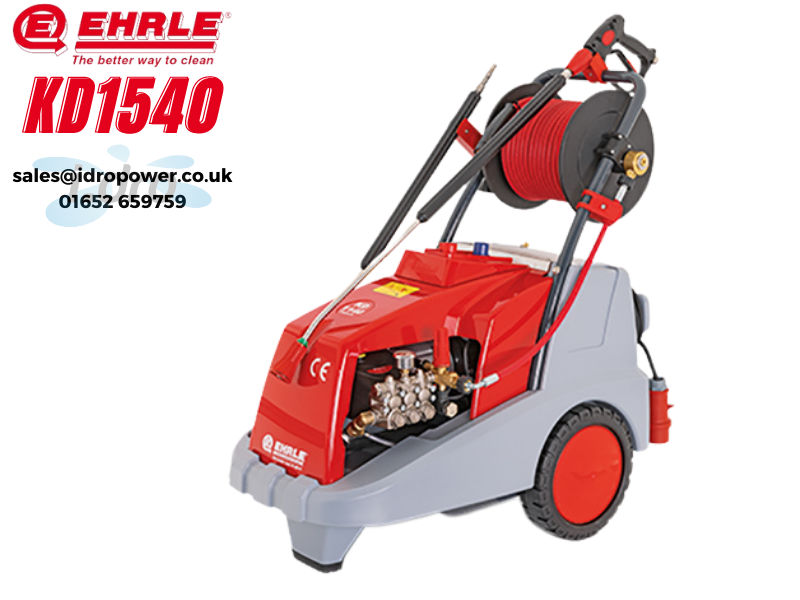

Ehrle KD1540 with detailsEhrle KD1540 with details

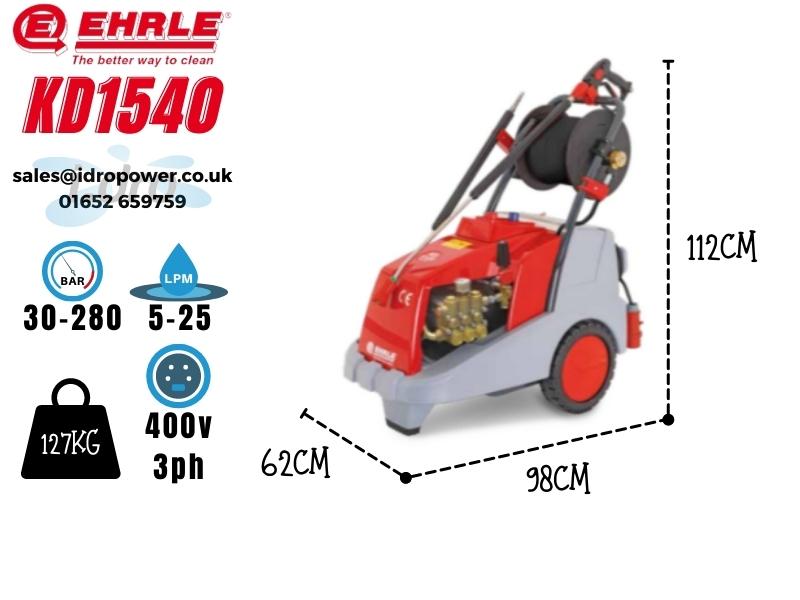

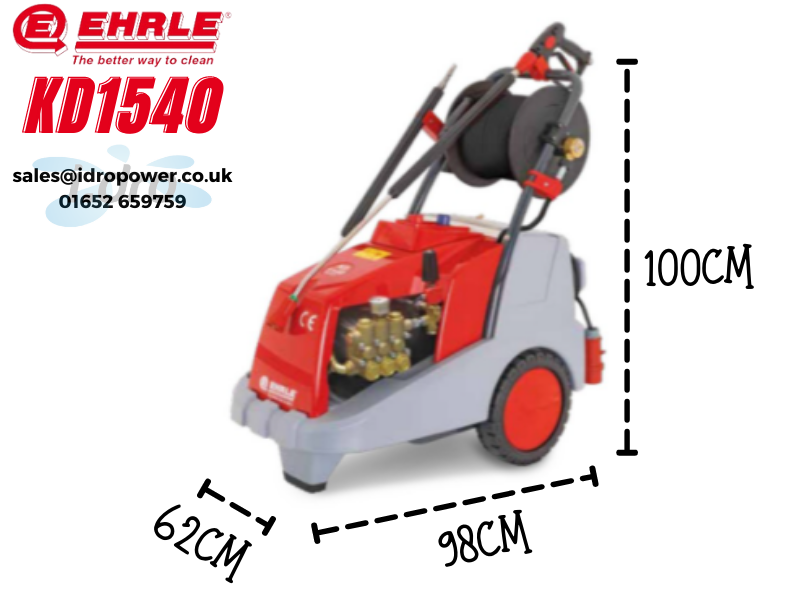

KD15405

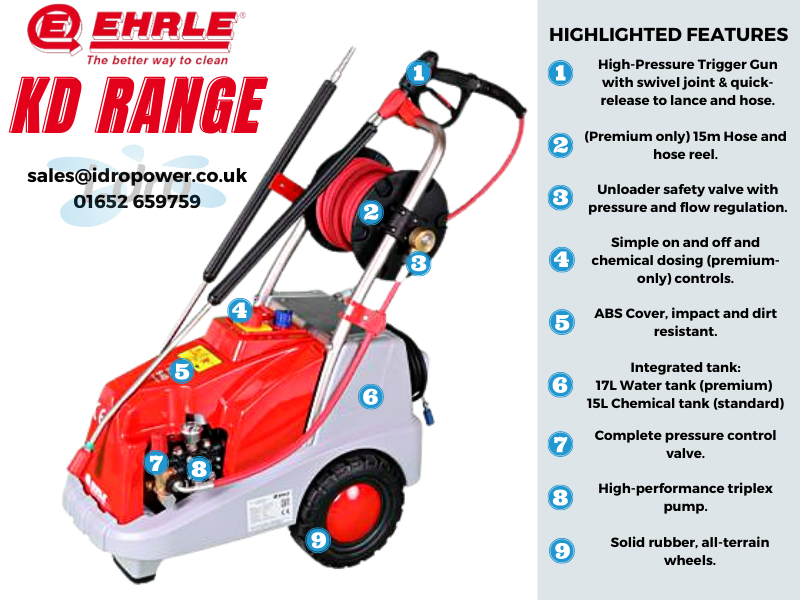

KD Range Highlight Features
Ehrle KD1540 with details
Description

Three-phase (415V) - Cold Water - Mobile

That’s a big number (1540), what does it mean?

Power. It means power.

The Ehrle KD1540 is the Big Bertha of Ehrle’s cold-water pressure washer range. Producing 30 - 280BAR and 300 - 1500 litres per hour (5 - 25LPM), just make sure you give the muck a chance to say its prayers.

Long live the king.

The Ehrle KD1540 boasts several trusty qualities and devices to improve its reliability and spare you headaches. For example, the KD line all boast leak-recognition, start-stop and total-stop systems.

Leak recognition

The leak detection system is a damage limitation feature. In the event of a leak, the system will shut down to avoid more serious (and costly!) damage.

Start-stop

The start-stop system effectively turns your trigger gun into a remote control. Released trigger = crouching tiger (the pump goes into stand-by); Depressed trigger = pouncing lion (the pump engages and water goes pew!).

The start-stop system improves reliability by reducing wear on the internal parts of the machine.

Total-stop

After 20-minutes of not being used, the pressure washer completely turns off. Should you accidentally forget to switch the machine off, this system saves energy and improves safety.

The Workstation

The KD1540 is a mobile cleaning unit. Sporting integrated hose-reel, holders and moulded bodywork for storing peripherals on it, you can store and transport everything you need easily.

Chemical Dosing

In addition to holding those important peripherals, the KD1540 also boasts an integrated chemical tank and chemical dosing system.

The chemical dosing system allows the user to accurately mix detergents into the high-pressure cleaning process. Saving time and the need for additional peripherals, the KD is made into a complete, compact package.


Get in touch / Find out more

The KD1540 is a three-phase/415v pressure washer. If you would like to learn more, ask for advice regarding your cleaning needs or discuss the possibility of acquiring a KD1540, then please do not hesitate to get in touch with us either by using Facebook Messenger, or the phone (01652) 659759 or by email .


Features

  • Hose-Reel
  • 15m HP-Hose
  • Trigger-Gun with swivel
  • Spray-Lance 900mm c/w Nozzle-Protection
  • Stainless-Steel Jet-Nozzle 25°
  • Spray-Lance 900mm c/w Rotary-Nozzle
  • 35L Water-Storage tank
  • Water-Supply separation acc. water reg.
  • Chemical supply in high-pressure Jet c/w Metering-valve



Specification Table

Type (KD)   623   823   940   1140   1340   1540
Voltage   1 /230V / 50Hz   3 / 400V / 50Hz
Operating pressure (bar)   30 - 160   30 - 140   30 - 190   30 - 250   30 - 170   30 - 280
Max. pressure (bar)   180   165   210   270   190   310
Discharge capacity (l/h)   300 - 600   300 - 720   300 - 840   300 - 1000   300 - 1300   300 - 1500
Nozzle size   034   045   070
Max. Inlet Temperature (°C)   45
Pump speed (rpm)   1400
Connected load (kW)   2,9   3,2   5,2   7,4
Electrical protection   16 (slow-blowing)   3 x 16 (slow-blowing)   3 x 32 (slow-blowing)
Standard Weight net / with package (kg)   46 / 66   51.8 / 71.8   54 / 74   89 / 113   89 / 113   127 / 151
Premium Weight net / with package (kg)   50 / 70   55.8 / 75.8   58 / 78   97 / 121   97 / 121   -
Standard Dimensions / with package (mm, L x W x H))   805 x 485 x 950 / 790 x 595 x 810   980 x 620 x 1000 / 1090 x 630 x 1120
Premium Dimensions / with package (mm, L x W x H)   830 x 485 x 950 / 790 x 595 x 810   980 x 620 x 1000 / 1090 x 630 x 1120
